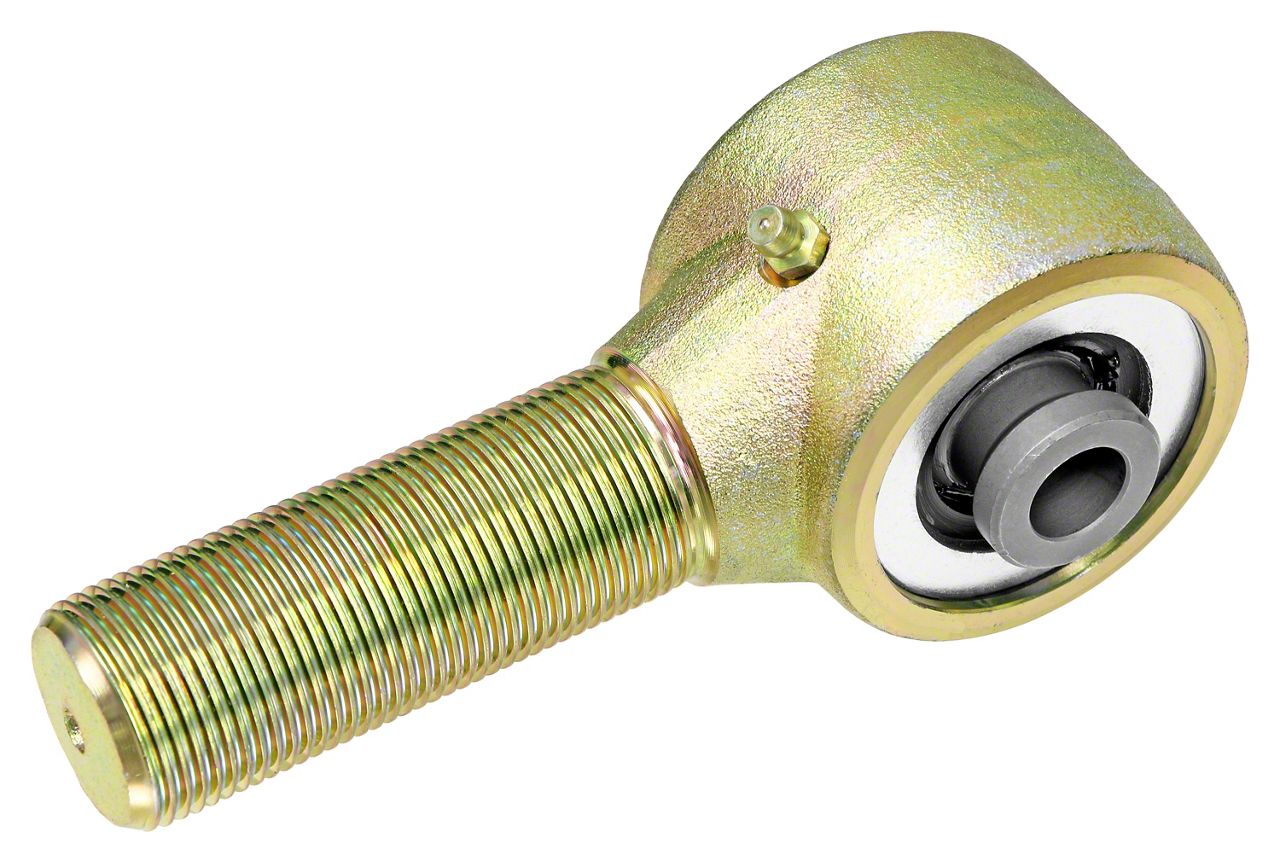

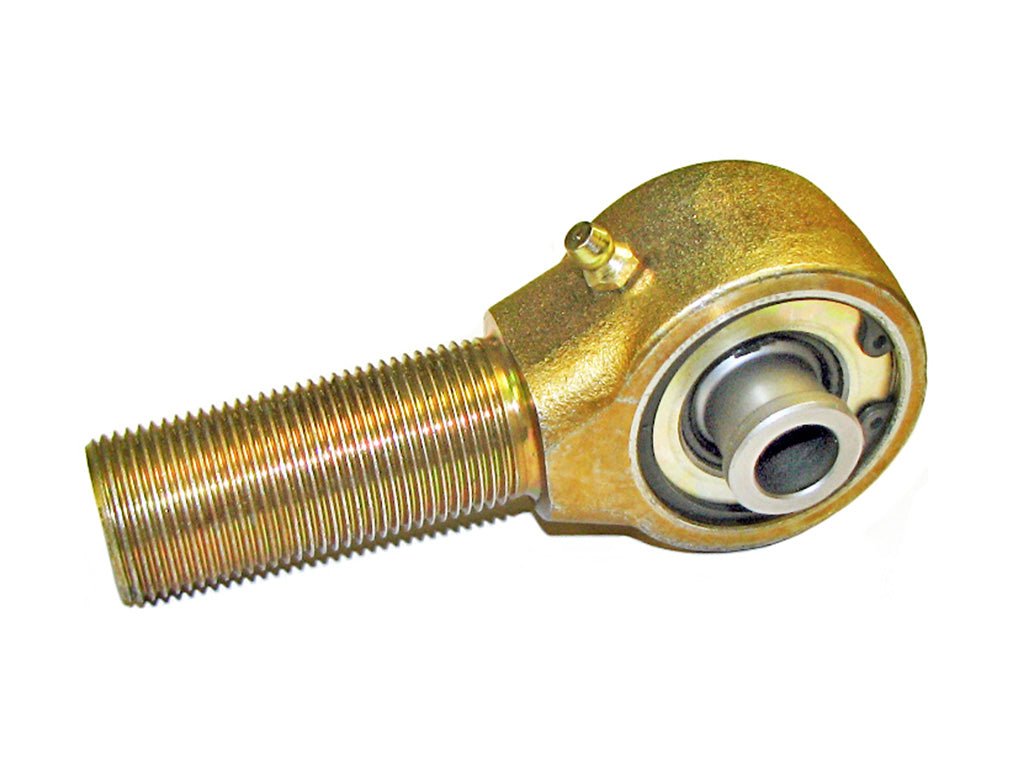

JOHNNY JOINT ROD END 2 1 2 INCH WELD ON 2.365 INCH X 0.562 INCH BALL Currie CE 9110P 14 Johnny Joint Rod End Walmart.com Johnny Joint Rod End 2 1 2 Inch Narrow Forged Long Shank 1 1 4 Inch 12 RH Threads 2.625 Inch x .640 Inch Ball RockJock 4x4 RJ 305300 102 Johnny Joint 2 in. Narrow Rod End, Long Shank (1 in. RH Forged Johnny Joint 1.25 Big Rod End Wrangler JK JL Contorl Arm Flex. RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high density urethane bushing that encases the inner ball. The heat treated center balls are cross drilled for thru bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1 2 inch diameter, narrow body and features a 9 1 2 inch long shank, from CL of joint to end of tip of threads), 3 1 2 inch of 1 1 4 inch 12 RH threads and a 2. 625 inch wide x . 640 inch thru hole center pivot ball. Additional features of the long shank design include the the jam nut being pushed outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut. Also, the smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating. Kit Fits: Universal Application Upgraded replacement joint for many common long arm kits on the market Kit Includes: (1) Forged Johnny Joint Assembly Rod End Specs: Forged 4140 chromoly construction 2 1 2 in. O. D., narrow body Johnny Joint at one end Measures 9 1 2 in. from CL of the joint to the end of the tip of the threads 3 1 2 in. of 1 1 4 in. 12 RH threads Features our CE 91102 28 center pivot ball (2. 625 in. x . 640 in.) Rod End Features: The long shank design pushes the jam nut outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut. The smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots. Notes: We recommend the use of our RJ 533000 1 Rubber Washers on each side of this Johnny Joint to encourage the joint to re center itself after articulating See CE 9114JN for a Jam Nut to fit this joint If a Weld In Bung AND Jam Nut are required, see CE 9114B Applicable Johnny Joint Tool for this joint: CE 9110T Johnny Joints require non synthetic, hi moly lube grease such as our CE 9013G Parts List: Johnny Joint Forging: RJ 335400 2 Johnny Joint Rebuild Kit: CE 9110NRK Johnny Joint Center Pivot Ball: CE 91102 28 Zerk Fitting: CE 1103K21
