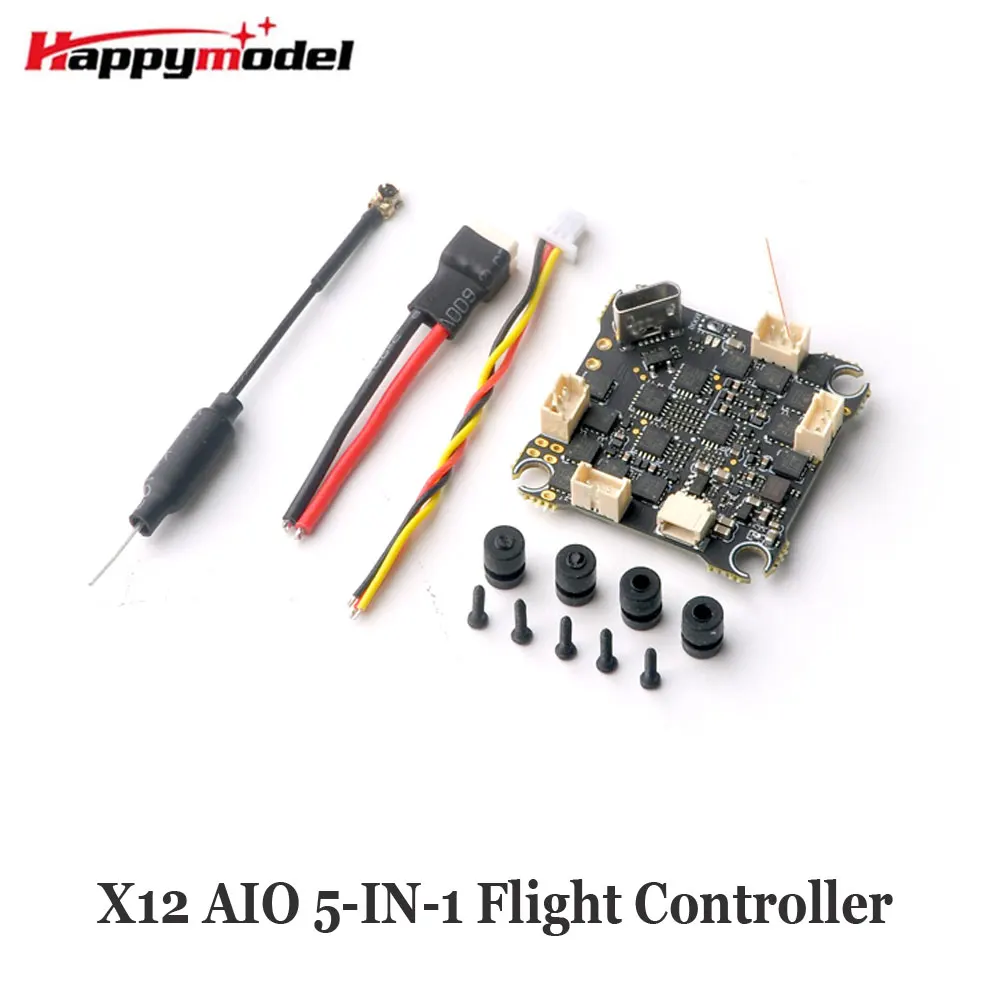

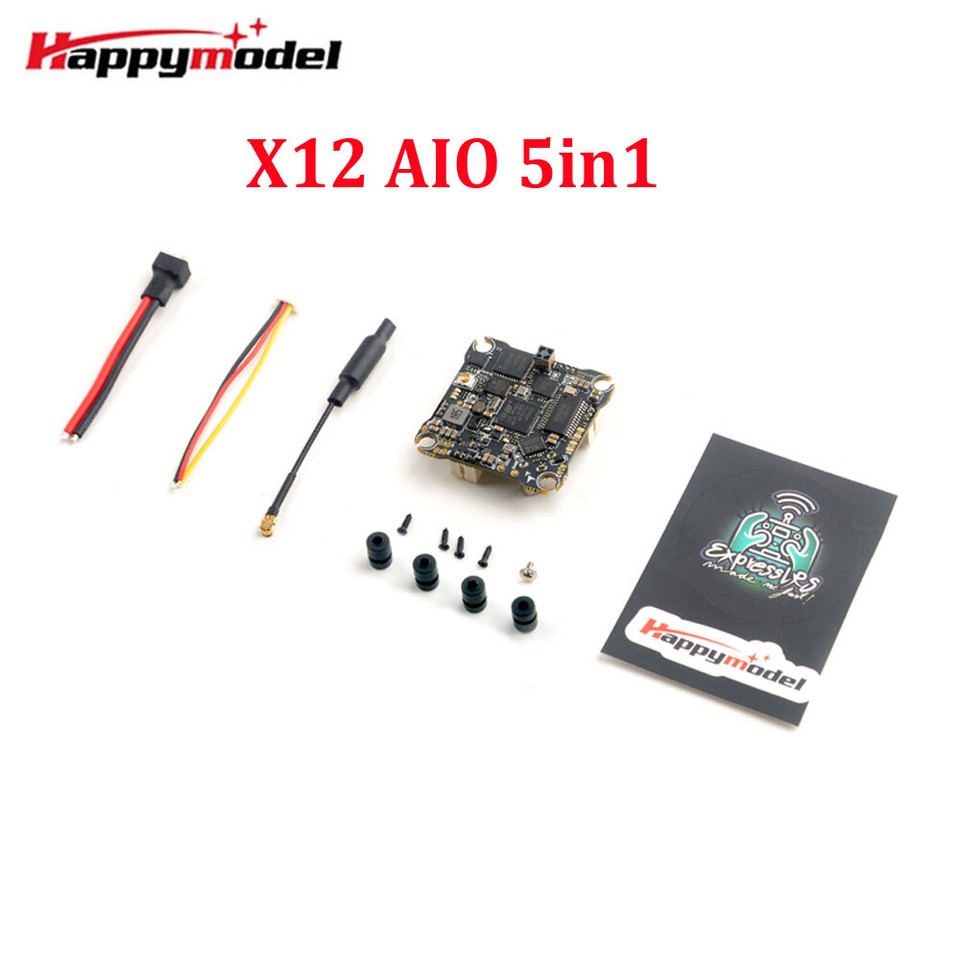

HappyModel X12 ELRS Pro V1.1 5in1 AIO Flight Controller Built in 2.4G HappyModel X12 AIO 5in1 Flight controller Built in 12A ESC Support 1 2S Happymodel X12 Frsky 5in1 AIO Flight Controller S4e40c92580884418bcb85f40f1b87f49b.jpg HappyModel X12 AIO 5in1 Flight controller Built in 12A ESC Support 1 2S. Happymodel X12 Frsky 5in1 AIO Flight Controller A Pilot's Dream Comes True Forget about the next level, with the Happymodel X12 Frsky 5in1 AIO Flight Controller, you're taking a warp speed journey to the Nth dimension of FPV flying! Why make do with basic, when you can have the world's first, sensational 5 in 1 AIO flight controller? That's right! With this little beauty, you've got an OPENVTX, 12A Brushless Blheli_S ESC and a Betaflight OSD, all in one slick package. Can your current flight controller promise RX and VTX range that would leave superman feeling envious? We didn't think so! But the Happymodel X12 is not your average flight controller. It's an airborne magician in a silicon cloak, designed for brushless whoops, set to bewitch you with unbelievable RX and VTX range. Key Product Highlights: Powerful Performance: This lightweight (5. 1g), STM32F411CEU6 MCU backed marvel packs a punch with its 1 2S Lipo LIHV battery support. It's essentially a Ferrari with wings! Sensational Sensor: Features a choice of MPU6000 or ICM20689 or BMI270 (SPI connection) sensor for a flawless, buttery smooth flight experience. Built in Bonanza: A built in 12A (each) Blheli_S 4in1 ESC, Betaflight OSD (SPI Control), 5. 8G OpenVTX 0mw~400mw, ExpressLRS 2. 4G, Frsky D8 D16, voltage meter sensor, and a current meter sensor. Talk about an all you can fly buffet! Cutting edge Compatibility: The onboard Frsky SPI D8 D16 receiver ensures sky high compatibility, supporting D8 model channels for Non EU transmitters, with failsafe support. So, FPV pilots, it's time to elevate your flying experience from "good enough" to "mind blowingly awesome"! With the Happymodel X12 Frsky 5in1 AIO Flight Controller, the sky's not the limit it's your playground. Let's paint the skies with the magic of next gen flight control! Specifications: Brand Name: Happymodel Item Name: X12 AIO 5 IN 1 Flight controller built in 12A ESC and OPENVTX Betaflight firmware target: FRSKY Version: CRAZYBEEF4FR VTX antenna: U. FL Weight: 5. 1g Support 1 2S Lipo LIHV battery Size: 30mm*30mm*8mm Flight controller X12 Frsky V2. 1 flight controller built in FRSKY 2. 4G receiver Target: CRAZYBEEF4FR MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM20689 or BMI270 or ICM42688P(SPI connection) Mount hole size: 25. 5mm*25. 5mm Power supply: 1 2S battery input (DC 2. 9V 8. 7V) Built in 12A(each) Blheli_S 4in1 ESC Built in Betaflight OSD(SPI Control) Built in 5. 8G OpenVTX 0mw~400mw Built in ExpressLRS 2. 4G,Frsky D8 D16, Flysky AFHDS 2A Built in voltage meter sensor , voltage meter scale 110Built in current meter sensor , current meter scale 470 Onboard 4in1 ESC Power supply: 1 2S LiPo LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7. HEX Default protocol: DSHOT300 Support Bluejay firmware When use Blujay firmware with 48khz, should set startup power to 1100 1200 Onboard Frsky SPI D8 D16 receiver Version SPI BUS receiver CC2500 RF Compatible Non EU transmitter D8 model Channels: 8ch No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support Support Frsky D8 D16 , Redpine , SFHSS Onboard Flysky SPI AFHDS 2A receiver Version SPI BUS receiver Protocol: AFHDS 2A Channels: 14ch(AFHDS 2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support Onboard 5. 8g OPENVTX Firmware version: OPENVTX Smartaudio v2. 1 PIT Mode support RCE Mode support Channels: 48ch Transmitting Power: 0 RCE 25mw 100mw 400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U. FL Specification Brand Name: Happymodel Item Name: X12 AIO 5 IN 1 Flight controller built in 12A ESC and OPENVTX Betaflight firmware target: ELRS Version: CRAZYBEEF4SX1280 VTX antenna: U. FL Weight: 5. 1g Support 1 2S Lipo LIHV battery Size: 30mm*30mm*8mm Flight controller X12 ELRS V2. 0 flight controller built in ELRS 2. 4G receiver Target: CRAZYBEEF4SX1280 MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU6000 or ICM20689 or BMI270(SPI connection) Mount hole size: 25. 5mm*25. 5mm Power supply: 1 2S battery input (DC 2. 9V 8. 7V) Built in 12A(each) Blheli_S 4in1 ESC Built in Betaflight OSD(SPI Control) Built in 5. 8G OpenVTX 0mw~400mw Built in ExpressLRS 2. 4G,Frsky D8 D16 Built in voltage meter sensor , voltage meter scale 110Built in current meter sensor , current meter scale 470 Onboard 4in1 ESC Power supply: 1 2S LiPo LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7. HEX Default protocol: DSHOT300 Support Bluejay firmware When use Blujay firmware with 48khz, should set startup power to 1100 1200 Onboard SPI ExpressLRS 2. 4GHz Receiver Packet Rate option: 50Hz 150Hz 250Hz 500Hz ExpressLRS Firmware version: V2. 0 RF Frequency: 2. 4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2. 0 TX Module Couldn't flash separately ExpressLRS firmware Onboard Frsky SPI D8 D16 receiver Version SPI BUS receiver CC2500 RF Compatible Non EU transmitter D8 model Channels: 8ch No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support Support Frsky D8 D16 , Redpine , SFHSS Onboard 5. 8g OPENVTX Firmware version: OPENVTX Smartaudio v2. 1 PIT Mode support RCE Mode support Channels: 48ch Transmitting Power: 0 RCE 25mw 100mw 400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U. FL Included 1 x Happymodel X12 Frsky AIO Flight Controller Board Product Tags: FPV flight controller, Happymodel X12, Frsky 5in1 AIO Flight Controller, Frsky D8 D16 compatible, built in Betaflight OSD, onboard Frsky receiver, built in Blheli_S ESC, built in OpenVTX.
